Sunny Tripower
Supported Devices
| Device Type | Variants | Modbus TCP (Ethernet) | Curtailment | Minimum firmware version |
|---|---|---|---|---|
| Sunny Tripower | STP 3.0 | ✅ | ✅ | 4.03.07.R |
| STP 4.0 | ||||
| STP 5.0 | ||||
| STP 6.0 | ||||
| STP 8.0 | ||||
| STP 10.0 | ||||
| Sunny Tripower X | STP X12 | 03.12.15.R | ||
| STP X15 | ||||
| STP X20 | ||||
| STP X25 | ||||
| Sunny Tripower TL | STP 8000TL-10 | 02.65.02.R | ||
| STP 10000TL-10 | ||||
| STP 12000TL-10 | ||||
| STP 15000TL-10 | ||||
| STP 17000TL-10 | ||||
| STP 5000TL-20 | ||||
| STP 6000TL-20 | ||||
| STP 7000TL-20 | ||||
| STP 8000TL-20 | ||||
| STP 9000TL-20 | ||||
| STP 15000TL-30 | ||||
| STP 17000TL-30 | ||||
| STP 20000TL-30 | ||||
| STP 25000TL-30 | ||||
| Sunny Tripower TLEE | STP 10000TLEE-10 | 02.50.87.R | ||
| STP 15000TLEE-10 | ||||
| STP 20000TLEE-10 | ||||
| Sunny Tripower Core 1 | STP 50-40 | 4.01.05.R | ||
| STP 50-41 | ||||
| Sunny Tripower Core 2 | STP 110-60 | 1.01.04.R |
Wiring
For correct ethernet wiring: Follow the the guidelines for ethernet wiring.
Configuration
- Connect with your computer on the same LAN network as the SMA Sunny Tripower.
- In your web browser, surf to the IP address of the device.

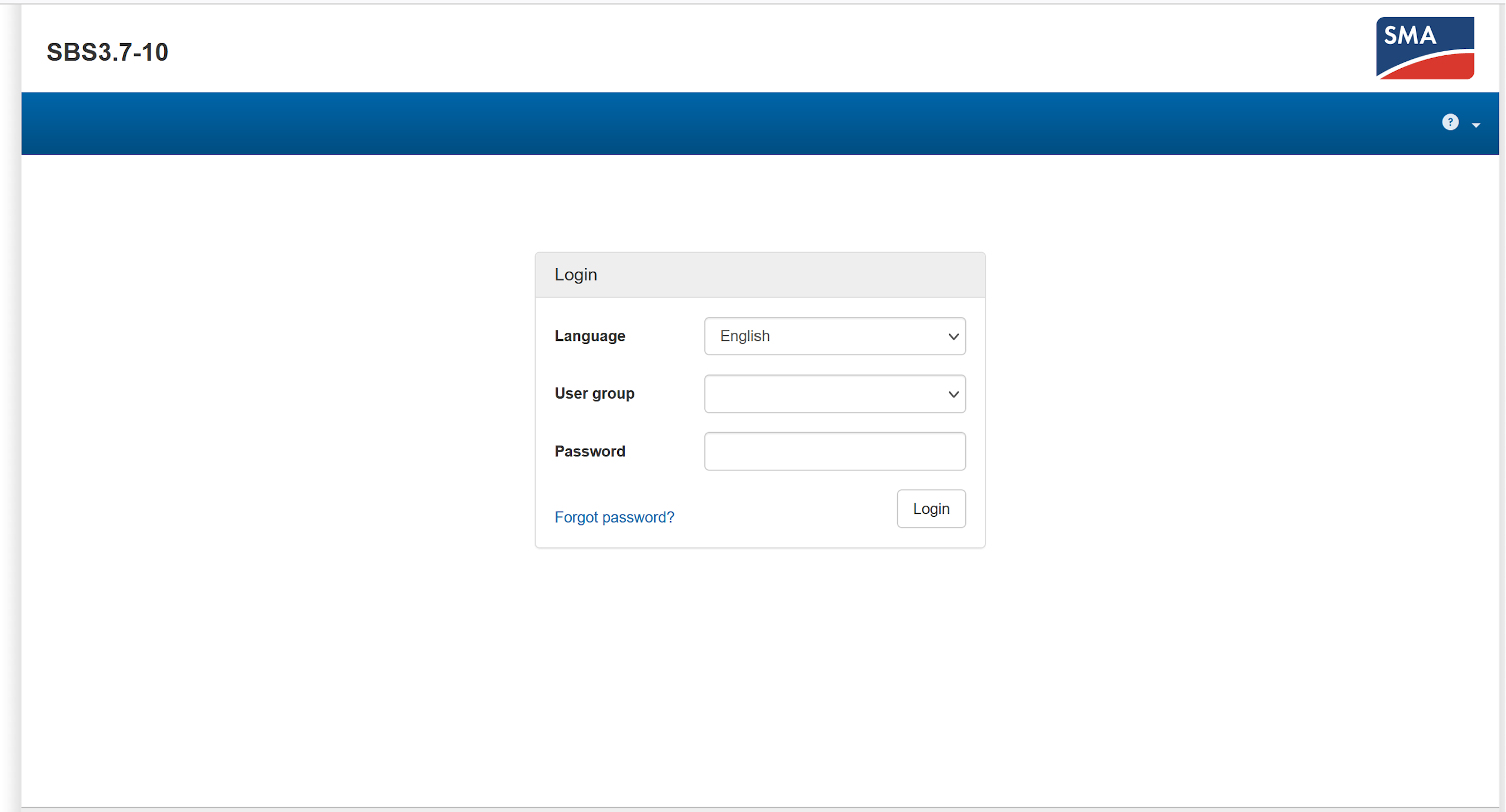

- Log in as "Installer."

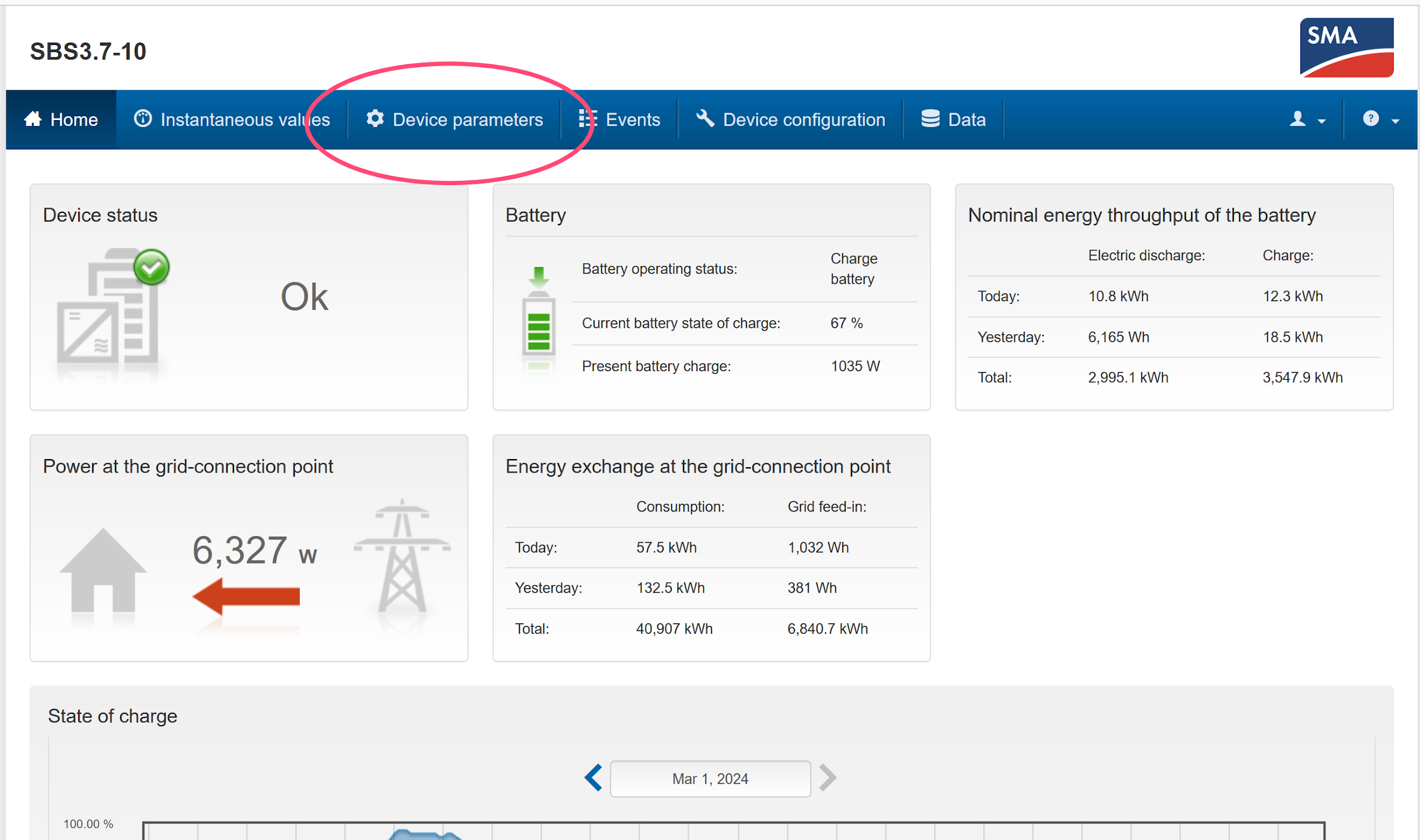

- Go to the device parameters tab.

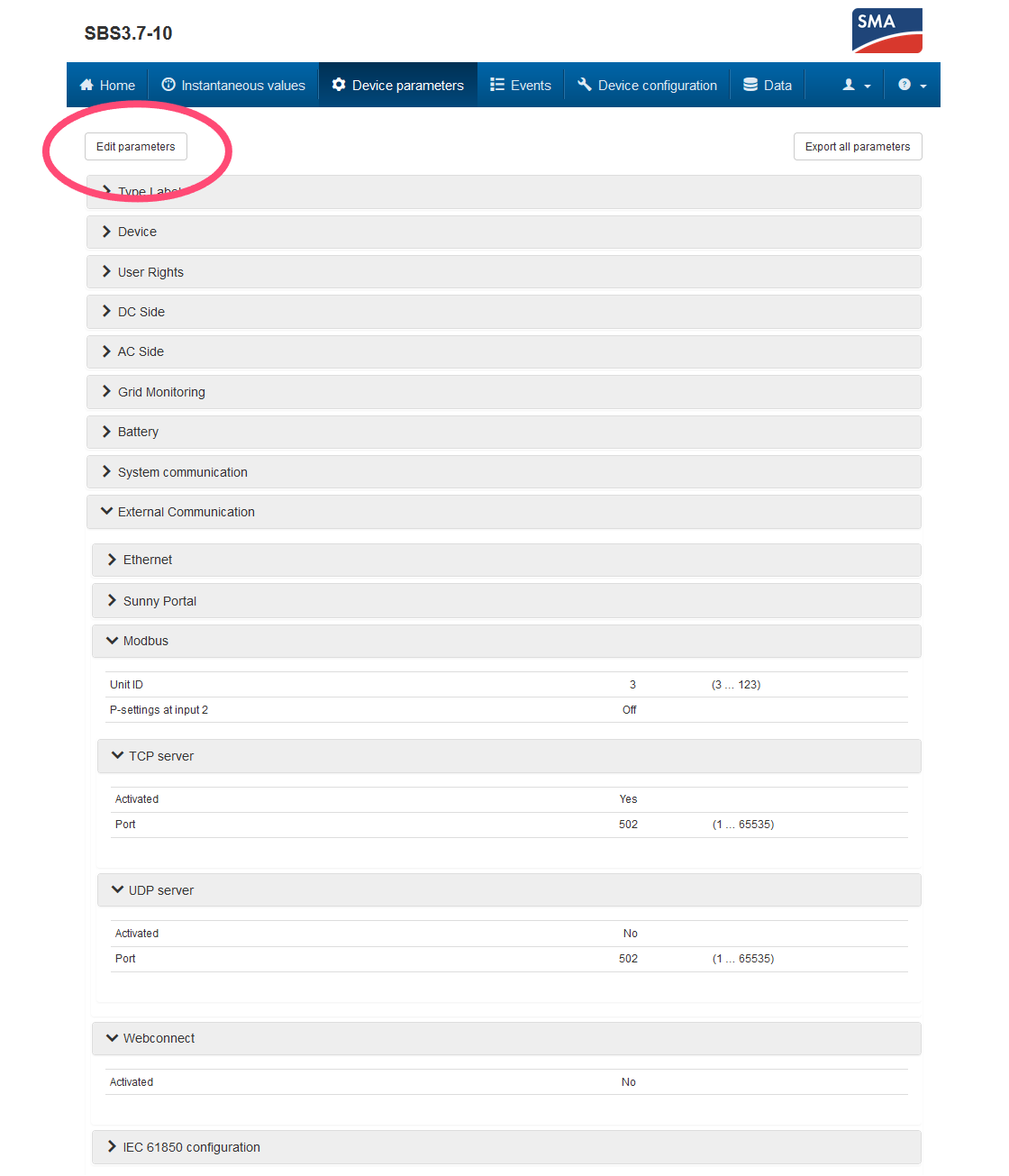

- Click "Edit parameters."

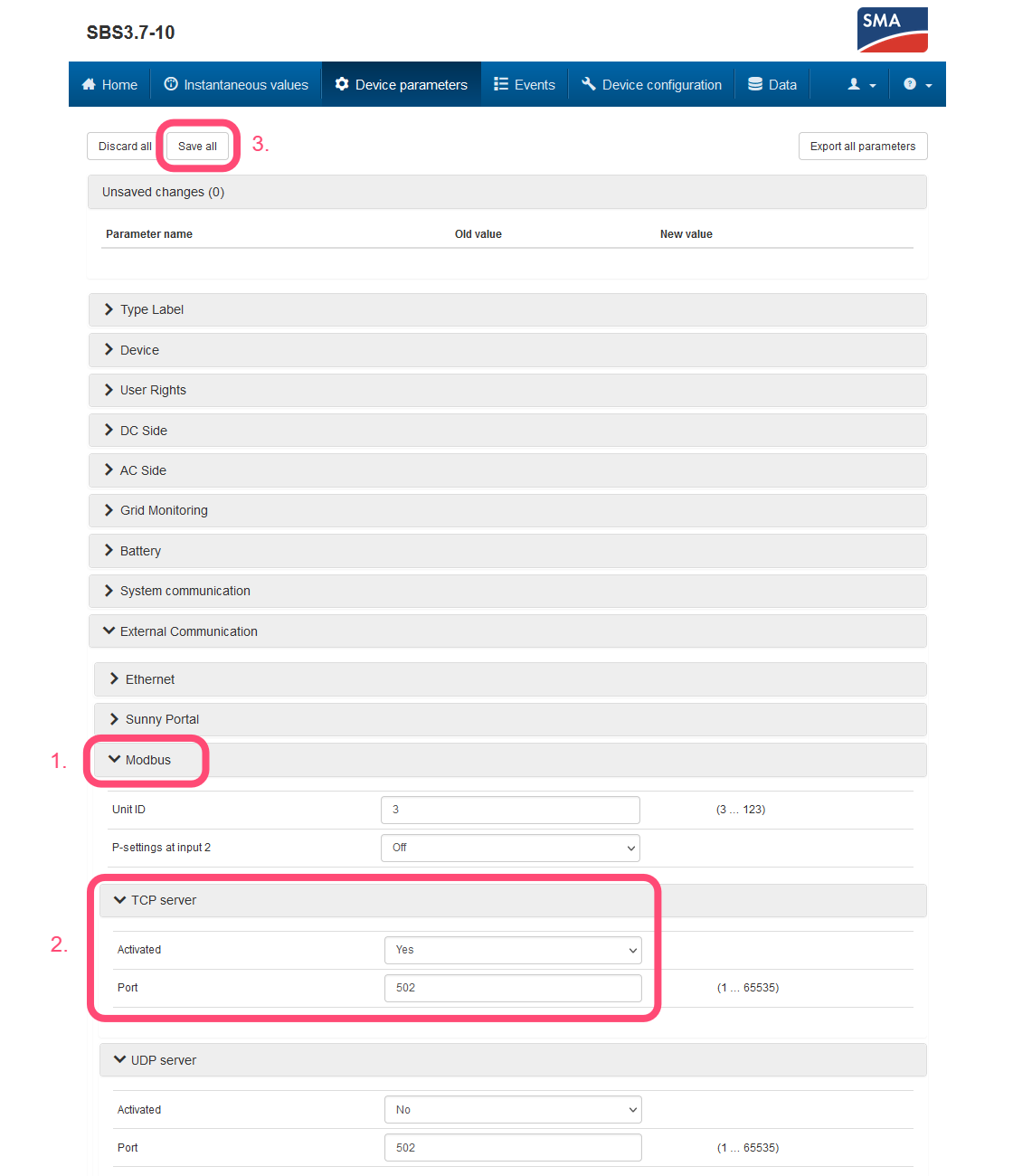

- Open the "External Communication" dropdown menu → "Modbus" → "TCP server."
- Set "Activated" to "Yes" and "Port" to "502".
- At the top of the page, click "Save all."
